CAD models of all camera series in STEP format.
Please note that the CAD models for the C Series are identical to those of the CR Series.
| Device | STEP Files | |
|---|---|---|

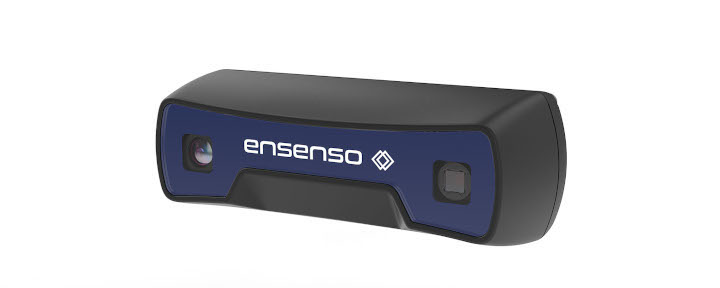

B Series | B57-* | |

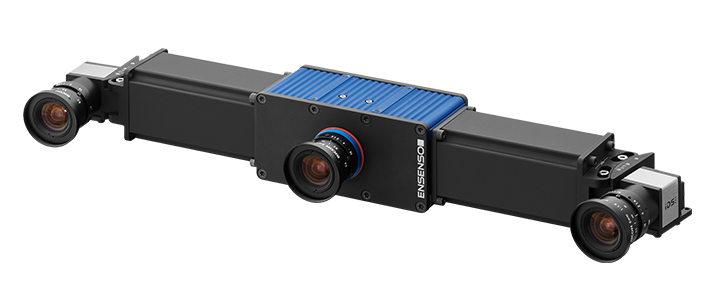

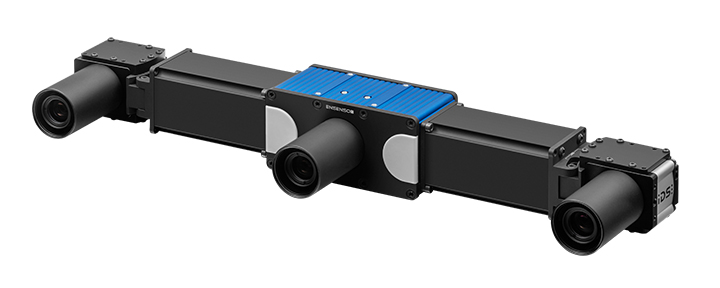

C Series | C57-*-L C57-*-M C57-*-S C67-*-L C67-*-M C67-*-S | |
X Series | X36-*CP-*/*/*-400/* X36-*CP-*/*/*-200/* X36-*FA-*/*/*-400/* X36-*FA-*/*/*-200/* | |

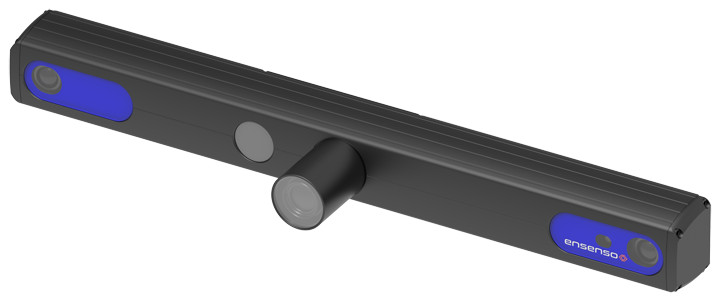

XR Series | XR36-*FA-*/*/*-400/* XR36-*FA-*/*/*-200/* | |

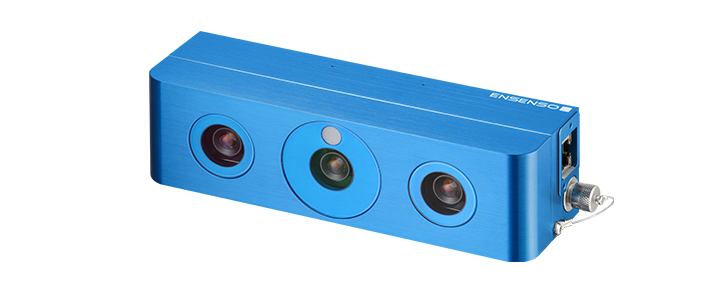

N40 Series | N4* | |
N30 Series | N3* | |
S10 Series | S10 | |
Mountings | Hole Pattern N30 Series Hole Pattern N40 Series Hole Pattern X and XR Series Hole Pattern S10 Series Hole Pattern (PDF) | |

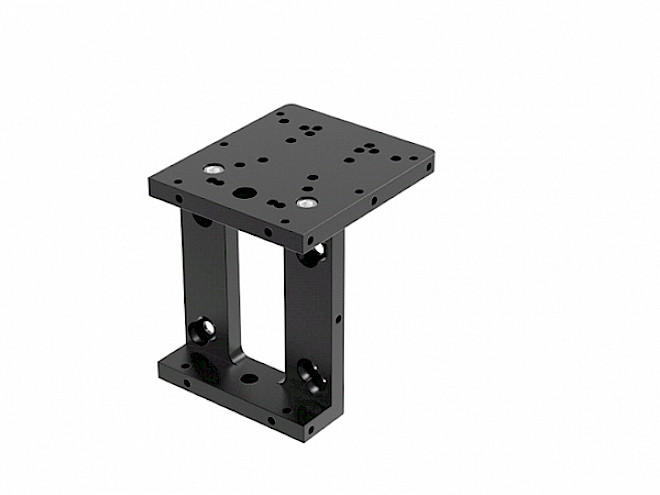

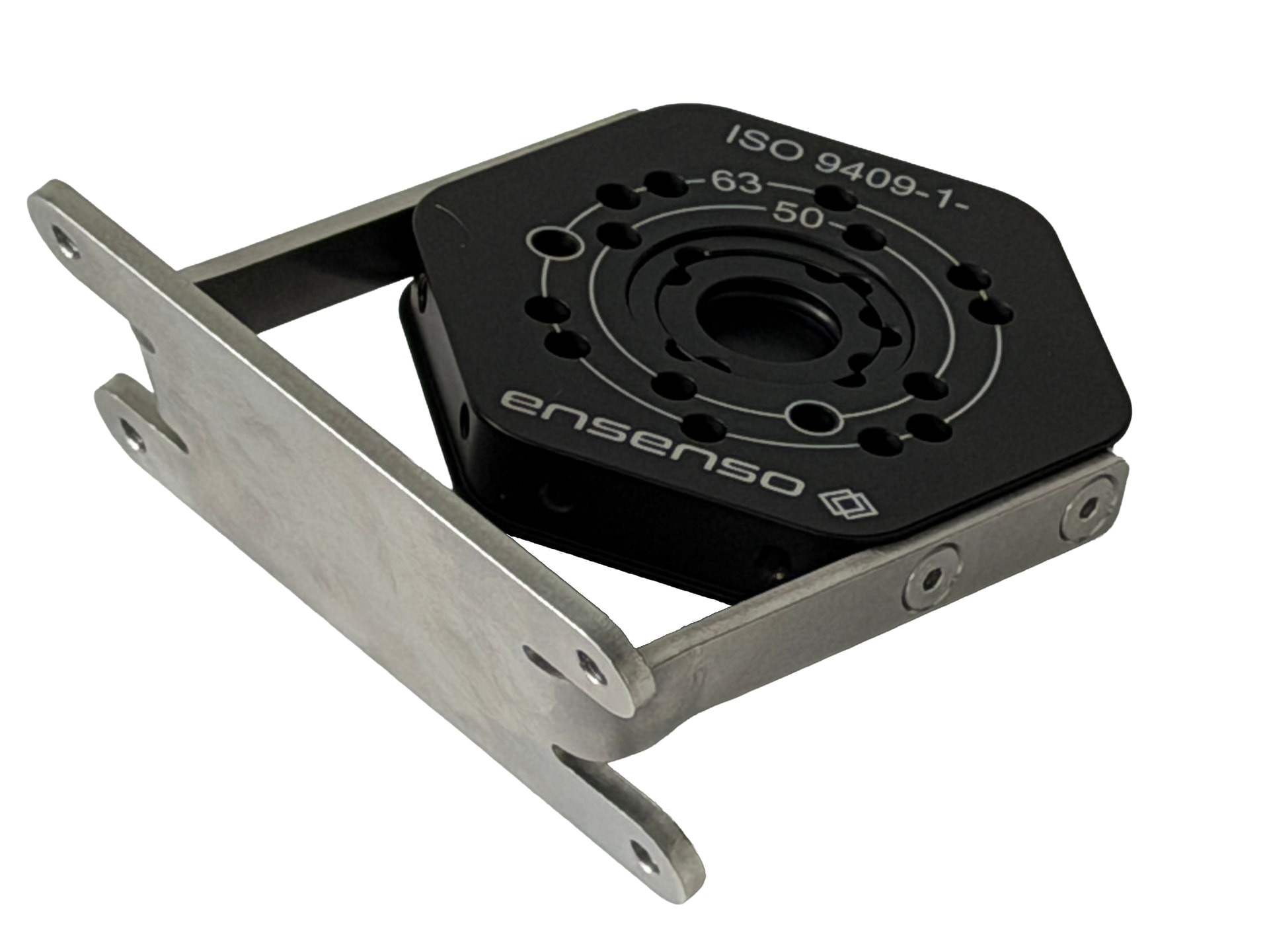

Robot Mountings (Adjustable) | Robot Mounting B Series Robot Mounting N3x/N4x Series | |

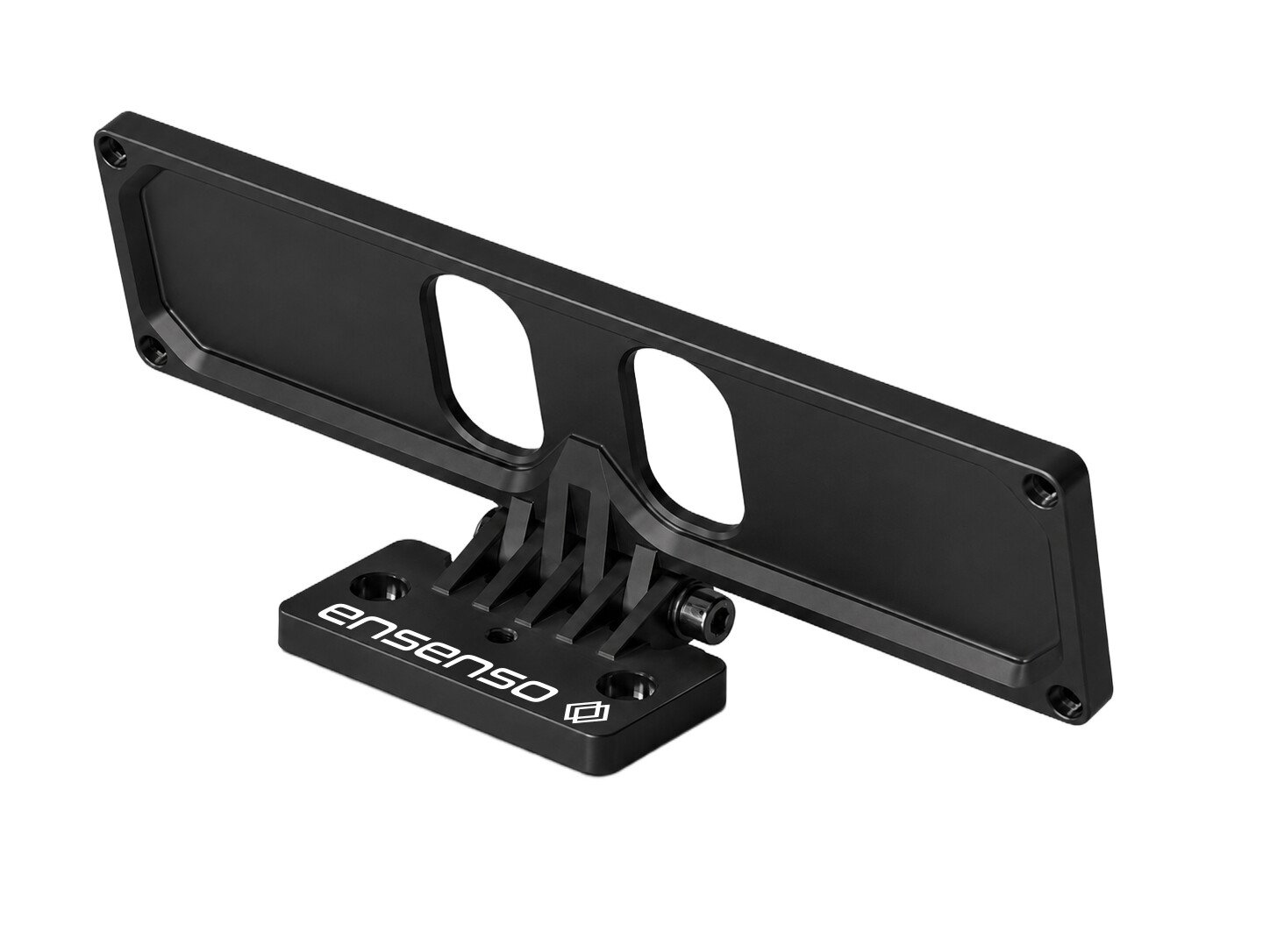

Stationary Mountings (Adjustable) | Stationary Mounting C Series Stationary Mounting N/X/B Series |
